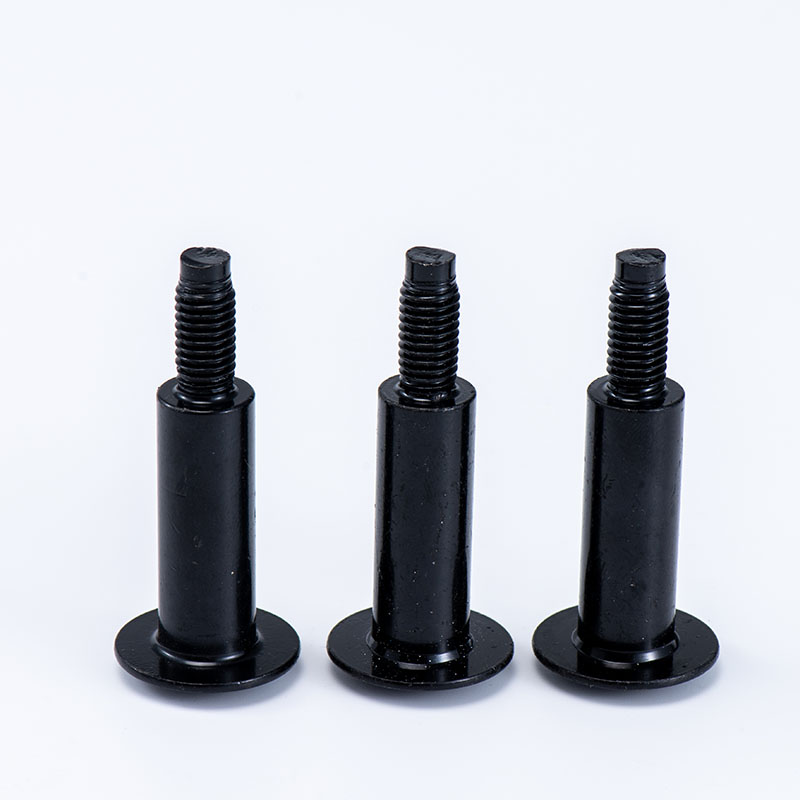

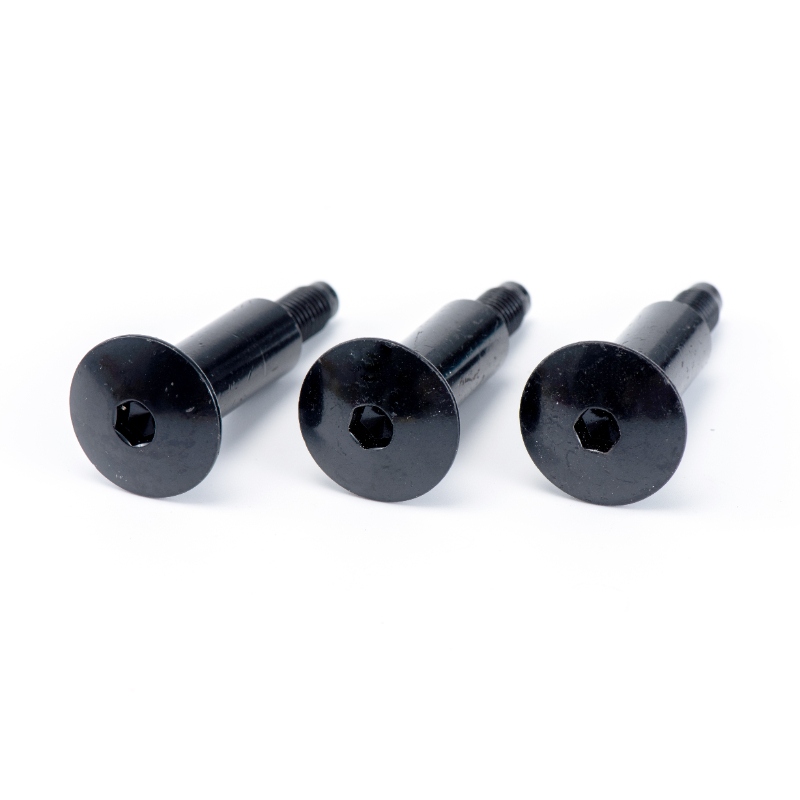

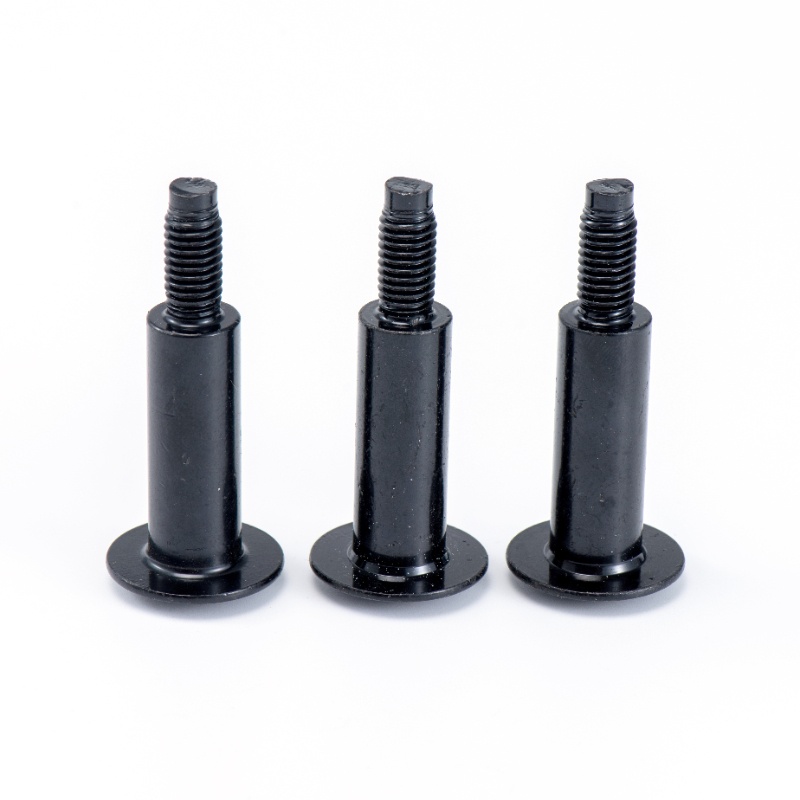

Large Flat Head Step Screws

Large Flat Head Step Screws are specialized fasteners designed with a wide, flat head and precision-machined stepped shaft. The flat head provides a large contact surface area for secure fastening, while the step or shoulder section ensures precise alignment and spacing in mechanical assemblies.

These Screws are commonly manufactured from high-strength materials such as stainless steel, alloy steel, or carbon steel, offering excellent mechanical performance, corrosion resistance, and long-term durability. Surface finishes like black oxide, zinc plating, or custom coatings are also available for added protection and aesthetic appeal.

Large Flat Head Step Screws are ideal for applications where controlled depth, smooth alignment, and load distribution are critical. They are frequently used in tooling, die-casting machines, automation systems, electronic enclosures, and industrial equipment.

Key Features

• Large Flat Head:The wide, flat head design ensures that the screw sits flush with the material surface, providing a clean and polished appearance while distributing the load over a larger area to prevent material damage.

• Stepped Shaft:The shaft features multiple diameters along its length, enabling the screw to securely fasten components with different hole sizes or thicknesses. This design ensures a tight fit and prevents wobbling or misalignment.

• Threaded Section:The lower portion of the shaft is typically threaded, providing strong holding power in the material, while the unthreaded upper portion (step) allows for easy insertion and positioning.

• Material:Manufactured from high-strength materials such as carbon steel, stainless steel, or alloy steel to offer durability, resistance to wear, and corrosion resistance, especially in demanding environments.

• Finish Options:Available in various finishes like zinc plating, black oxide, or plain, to suit different application needs and provide additional protection against corrosion.

Applications

• Automotive Industry:Used in assembling components where precise alignment and a flush finish are essential, such as in car interiors, dashboards, or paneling.

• Electronics:Ideal for securing circuit boards or other electronic components where space is limited and a smooth surface is required.

• Furniture Assembly:Employed in furniture making, particularly in applications where the screw needs to be concealed or the surface needs to remain smooth.

• Machinery:Used in machinery assembly where multiple components with different hole sizes must be securely fastened together without compromising alignment.

• Construction:Suitable for architectural and interior construction projects where a sleek finish and precise component placement are necessary.

Advantages

• Flush Finish:The large flat head design ensures that the screw head does not protrude, which is important for both aesthetic reasons and safety, preventing snagging or interference with other parts.

• Strong and Secure:The stepped shaft design provides a strong, secure fastening by fitting tightly into varying hole sizes, reducing the risk of misalignment or loosening over time.

• Versatile Use:Suitable for a wide range of materials and applications, including metal, wood, and composites, making these screws highly versatile.

• Easy Installation:The design allows for straightforward installation using standard tools, with the stepped shaft aiding in precise placement.

Considerations

• Correct Sizing:It is important to select the correct size and step configuration to match the thickness and hole sizes of the materials being fastened.

• Material Compatibility:Ensure that the screw material is compatible with the materials being fastened, especially in corrosive environments or where galvanic corrosion could be a concern.

FAQ – Large Flat Head Step Screws

Q1: What are Large Flat Head Step Screws used for?
A1: These screws are primarily used in precision applications where controlled depth and alignment are required, such as mold and die assemblies, automation equipment, and electronic enclosures.

Q2: What materials are available for Large Flat Head Step Screws?
A2: Common materials include stainless steel (e.g., SS304, SS316), carbon steel, and alloy steel. Custom materials like brass or titanium are available upon request.

Q3: What sizes and step dimensions can you provide?
A3: We offer both standard and custom sizes. Step dimensions (shaft diameter, length, thread size) can be precisely machined based on your drawings or application needs.

Q4: What surface treatments are available?
A4: Available finishes include black oxide, zinc plating, nickel plating, and passivation. These enhance corrosion resistance and product longevity.

Q5: Can you produce screws according to our drawings or samples?
A5: Yes, we support OEM/ODM and can produce step screws according to technical drawings, CAD files, or physical samples.
