Square Head Set Screws

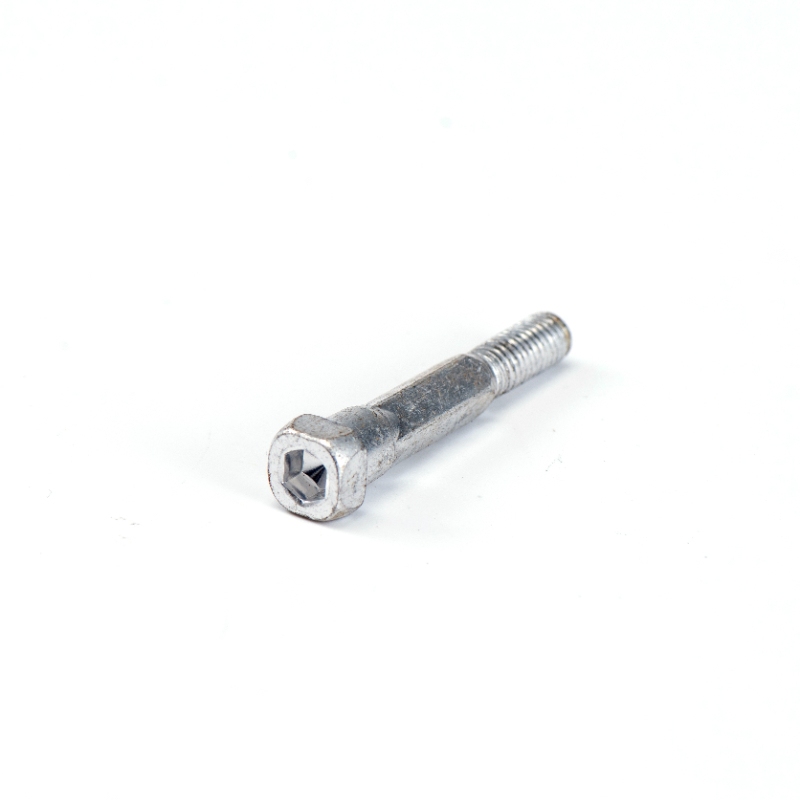

A Square Head Set Screw is a specialized type of fastener designed to secure an object within or against another object, typically without the use of a nut. Characterized by a square-shaped head protruding from the body, these Screws are engineered for applications requiring high torque transmission and exceptional resistance to stripping. The square head design provides a large, flat surface area for a wrench or spanner, allowing for significantly greater tightening force compared to many other drive types. The set screw itself is typically fully threaded and lacks a protruding head, meaning it sits flush or within the material it is fastening. Common materials include low to medium carbon steel (Grade 5, with a tensile strength of approximately 120,000 psi or 827 MPa), stainless steel (often Grade 18-8, with a tensile strength of ~70,000 psi or 483 MPa and high corrosion resistance), and alloy steel (Grade 8, with a tensile strength of 150,000 psi or 1,034 MPa). The points are available in various styles—such as cup, flat, oval, cone, and half dog—each tailored to specific gripping and holding requirements on the shaft or component being secured.

Key Characteristics and Technical Data

The defining feature of these Fasteners is their square head. The head height is standardized, for instance, a 1/2" square head has a height of approximately 0.312 inches, providing a deep and secure engagement with a standard open-ended or box wrench. This design allows for the application of very high torque, often exceeding that of comparable hex socket drives, reducing the risk of tool slippage and subsequent damage to the fastener or injury to the operator. The threads are most commonly Unified National Coarse (UNC) or Unified National Fine (UNF), with standard diameters ranging from #4 up to 1 inch or more. The robust construction, especially in heat-treated alloy steel versions, enables them to withstand severe vibrational loads and environmental stresses without loosening. The combination of high clamp load, mechanical strength, and the positive drive engagement of the square head makes them a superior choice for permanent or semi-permanent installations in heavy machinery.

Primary Application Scenarios

Square Head Set Screws are predominantly found in demanding industrial and mechanical settings where reliability under stress is paramount. A classic application is in power transmission systems, such as securing gears, pulleys, and sprockets to rotating shafts. The high torque capability ensures these components do not slip under high rotational forces. They are extensively used in the assembly of heavy-duty manufacturing equipment, agricultural machinery (e.g., tractor PTO shafts), and in mining and construction equipment where constant vibration would cause lesser fasteners to fail. Their simple, robust design also makes them a fixture in vintage machinery restoration and in applications where a socket wrench cannot be used due to space constraints, but an open-ended wrench can. The various point types cater to specific needs: a cup point is standard for biting into the shaft for maximum holding power, a flat point is used for frequent adjustments on a flat surface, and a half-dog point provides a positive drive for axial positioning.

Maintenance and Care Procedures

Proper maintenance is crucial to ensure the long-term performance and prevent seizing or failure of Square Head Set Screws. Prior to installation, it is critical to ensure that the threaded hole is clean, free of debris, and has sharp, undamaged threads. For steel screws, applying an anti-seize compound or a high-quality lubricant to the threads is highly recommended to prevent galling, especially in stainless steel applications, and to facilitate future removal. The correct size wrench must be used to avoid rounding the edges of the square head; the wrench should fit snugly without any play. During tightening, torque should be applied gradually and evenly according to specifications for the screw's grade and size to avoid over-tightening, which can strip the threads or damage the shaft. In corrosive environments, periodic inspection for rust or degradation is advised. If removal is necessary, ensure the wrench is fully engaged and use steady, firm pressure. For recalcitrant screws, applying a penetrating oil and allowing it to soak for several hours, or the careful application of heat to the surrounding component (not the screw itself), can help break the bond caused by corrosion or thread locking.

Despite their simplicity, the integrity of any assembly relying on set screws depends on their correct selection, installation, and upkeep. Their design, a testament to function over form, continues to make them an irreplaceable solution in numerous high-stress engineering applications.
